RhinoCount v0.3
An everyday tool for Rhinoceros, to count geometry objects with a single click.
Release Notes:
This is the first public release of RhinoCount.
- The command Count allows for counting of different objects in rhino. It’s possible to set the objectname according the numbering of the count settings and place a dot automatically in the center of the object or pick an individual textdot location. This command sets also userdata which can be used with FabTools in Grasshopper to sort the referenced geometry.
- The command DeleteCount deletes the count of the selected objects. If the selection has no counted objects the whole document is searched for counted objects. You will be asked to delete the counting of n objects and if committed, it will erase the counting data and the dot.
Description:
RhinoCount is a Plug-In for Rhinoceros 5. With the command „Count“ all sorts of geometry objects can be counted with a higly customizable counting tool. The Counts can be shown by changing the object name and or placing a text dot with the number. The counted objects can later on be used for layouting or referenced to Grasshopper in the counted order (FabTools required).
Requirements: McNeel Rhinoceros 5x64 SR9 or higher.
Author and Copyright: Florian Frank
Installation:
- Download the "RhinoCount.rhi", from the link above.
- Run the downloaded .rhi file (Rhinoceros Installer Engine) and follow the steps on the screen.
- Restart Rhinoceros 5.
TIP:

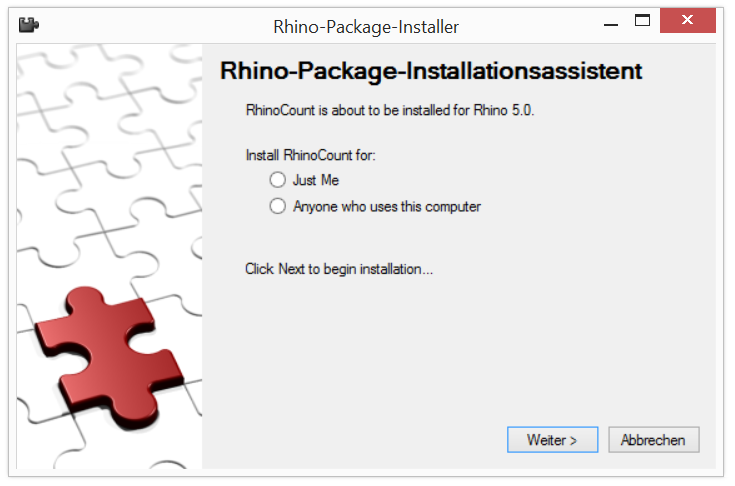

If the installer doesn't work or the dialog in the above image isn't showing, you may choose Open With for the .rhi file and then navigate to C:\Programs\Rhinoceros 5\system\x64\rhiexec.exe.
